New release | Frictional Torque Sensor System FGDH-4A

Model：

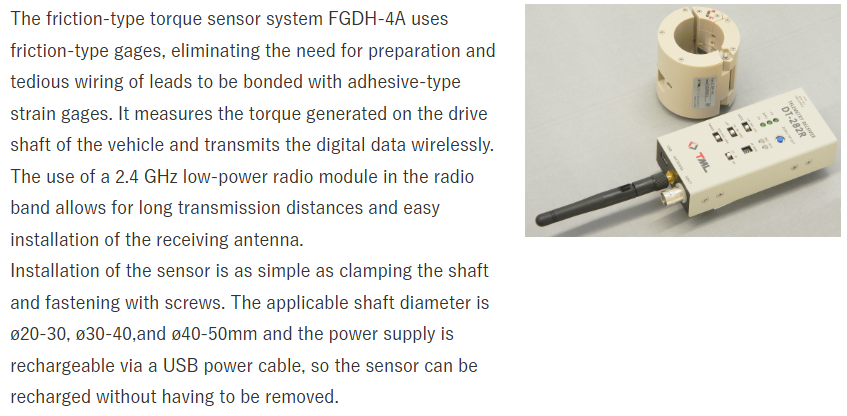

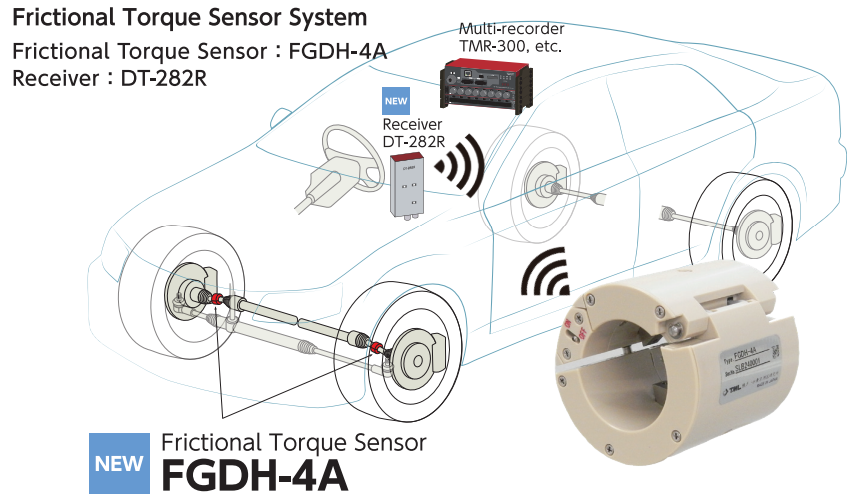

Use：The friction-type torque sensor system FGDH-4A uses friction-type gages, eliminating the need for preparation and tedious wiring of leads to be bonded with adhesive-type strain gages. It measures the torque generated on the drive shaft of the vehicle and

Standard：

Product Detail
Project Case



Features

  • 2.4 GHz band is used for wireless communication

  • Applicable shaft diameter ?20-30, ?30-40,and ?40-50mm

  • No bonding is required because frictional strain gauges are used

  • Measurement possible immediately after clamping on the drive shaft

  • Digital communication system adopted for noise-resistant measurement without wiring

  • Easy-to-use rechargeable power source

  • Power saving function, enabling longer measurement times than before

  • Switchable between three output voltage ranges ±3200, ±6400 and ±16000 x 10-6 strain

  • Can be used as a transmitter unit with 4-gauge method input

  • Receiver DT-282R is dedicated to FGDH-4A







For detailed specifications, please contact EPC!
