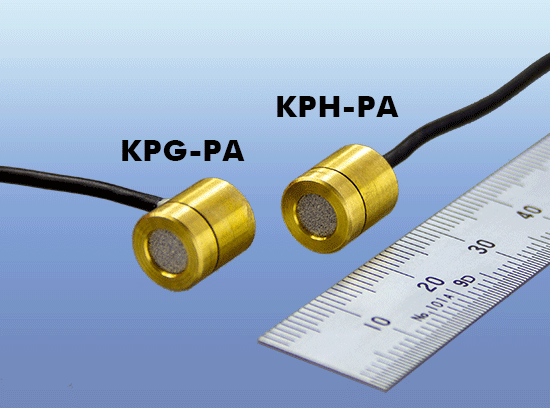

New Product Announcement | Ultracompact Pore Pressure Gauge KPG/KPH

The TML Japan has introduced their new miniature pore pressure gauge with the capacity of 50kPa to 100kPa, which is for measurement of pore water pressure in soil. It is designed for use in model testing, and is applicable to measurement for about one week under conditions within the specifications.

Features

Extremely small with ?8.7mm outer diameter
Extremely light with ~2.3g
Easy handling
Dual casing structure eliminating the influence of external lateral pressure
Replaceable filter
The appropriate cable outlet direction can be selected according to experimental needs

Applications

The measurement of pore water pressure in various types of soil mechanics and geotechnical engineering tests, for the evaluation of foundation water content, the study of slope instability, exploration of tunnel and underground engineering excavation models, etc. In order to provide theoretical reference for various designs, disaster reduction, early warning, governance, etc.

Specifications

Type	KPG-50KPA / KPH-50KPA	KPG-100KPA / KPH-100KPA
Capacity	50kPa	100kPa
Rated output	Approx.0.5mV/V (1000×10–6 strain)	Approx.0.75mV/V (1500×10–6 strain)
Non-linearity	1%RO
Filter mesh	40μm
Allowable temperature range	0~+60°C(No icing)
Input/Output resistance	350Ω
Recommended exciting voltage	2V or less
Allowable exciting voltage	5V
Weight	Approx. 2.3g
Protection ratings	IP68 equivalent
Input/Output cable	?1.7mm 0.035mm2 4-core shielded vinyl cable 2m

If you have other measuring requirements, you can choose KPE-PB series (200kPa~2MPa); if you need to measure the earth pressure at the same time, we recommend TML ultra-small earth pressure gauge PDA-PB/PDB-PB series (50kPa~3MPa) .

For more information, please contact Earth Products China Limited .
Service hotline: 400-700-9998
Email: marketing@epc.com.hk
Official website: en.epccn.com
