GDS Interface Shear Testing System (GDSIST) Has Won A Bidding At The University of Tianjin

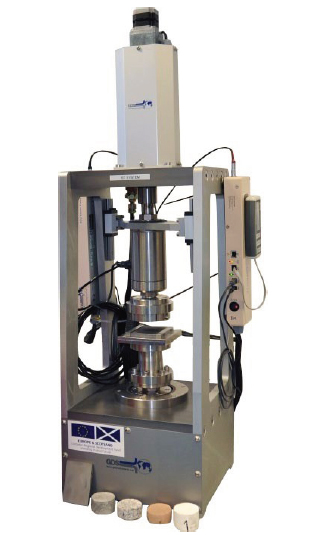

The Interface Shear Tester is a CRS consolidation cell with the additional ability that the base pedestal may infinitely rotate. The internal load cell measures both the axial force on the specimen as well as the torque generated.

The system is designed to test the shear interface between the sample and the top-cap.  Customers may bond specific materials to the top-cap for testing.


Actuators

1 off vertical, 1 off torsional
Axial Force Accuracy

±0.1%/RC
Axial/Torque Force Range

0.2kN/20Nm, 0.1kN/10Nm to 5kN/100Nm
Computer Interface

USB
Power

Table top frame: 240V, Control systems: 100-240V~1.6A MAX
Pressure Range (MPa)

1MPa
Sample Sizes

38mm-70mm
