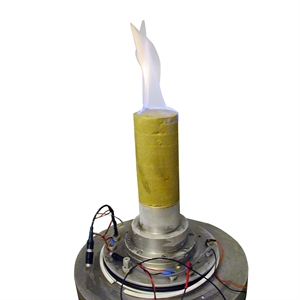

天然氣水合物即俗稱的可燃冰是甲烷和水在特定的高壓和低溫條件下結合而成的物質。這些條件在海床上形成,在那里天然氣水合物在沉積物的孔隙空間內不斷生長積聚。隨著逐漸分解,沉積物的強度呈減弱趨勢,孔隙空間逐漸增大,從而使沉積物內部出現脆弱區域,更嚴重時甚至?xí)l(fā)海底滑坡。
可燃冰是近20年來在海洋和凍土帶發現的新型潔凈能源,可以作為傳統能源如石油、碳等的替代品。據估算,世界上可燃冰所含有機碳的總資源量相當于全球已知煤、石油和天然氣的2倍。
但是對于可燃冰的開采技術尚未成熟,如果在開采過程中出現意外,可燃冰被擾動并且釋放到大氣中將會導致嚴重的環境問題,所以必須提前對可燃冰進行深入的科學研究。
英國GDS很早就介入了可燃冰三軸測試技術領域,在多年前就給英國南安普敦大學提供了專門用于可燃冰研究的低溫、高壓共振柱測試系統。
GDS最新開發了一系統天然氣水合物測試系統,又稱為可燃冰測試系統,系統包括三軸儀及共振柱。所有系統都能實現在高壓下(最高可達25MPa)對氣態反壓進行控制,例如甲烷,二氧化碳或氮,同時溫度可控制到零下20度。這是在實驗室內培養及測試可燃冰的必要溫度,下面是使用GDS可燃冰系統所做科學研究的相關論文。
GDS可燃冰測試系統相關文獻:
Priest, J.A. Clayton, C.R.I. and Rees, E.V.L. (2014) | "Potential impact of gas hydrate and its dissociation on the strength of host sediment in the Krishna-Godavari Basin" Marine and Petroleum Geology |
Best, A.I., Priest, J.A., Clayton, C.R.I. and Rees, E.V.L. (2013) | "The effect of methane hydrate morphology and water saturation on seismic wave attenuation in sand under shallow sub-seafloor conditions" Earth and Planetary Science Letters, 27 February 2013 |
Rees E.V.L, Priest J. A., Clayton C. R. I., (2011) | "The structure of methane gas hydrate bearing sediments from the Krishna-Godavari Basin as seen from micro-CT scanning" Marine and Petroleum Geology, 28, 1283-1293 |
Clayton, C.R.I. (2011) | "Stiffness at small strain: research and practice" 50th Rankine Lecture, Geotechnique, 61, 1, 5-30 |
Best, A.I., Priest, J.A. & Clayton, C.R.I. (2010) | "A resonant column study of the seismic properties of methane-hydrate bearing sand" In "Geophysical Characterization of Gas Hydrates” (Ed. Riedal, M., Willoughby, E.C., and Chopra, S.), Section 4 (Laboratory Studies), Chapter 24, pp. 337-346. SEG Geophysical Developments Series No. 14. |
Sultaniya A, Clayton C. R. I., and Priest J. A., (2010) | "Assessing Cross Anisotropy of Small-Strain Stiffness using the Resonant Column Apparatus" 5th Int. Conf. on Recent Advances in Geotechnical Earthquake Engineering and Soil Dynamics, May 24th-29th May, San Diego, USA, Paper No. 1.14b |
Clayton C. R. I., Priest J. A., Rees E.V.L, (2010) | "The effects of hydrate cement on the stiffness of some sands" Géotechnique, 60, 6, 435-455. DOI: 10.1680/geot.2010.60.5.435 |
Priest, J. A., Rees, E. V. L. and Clayton, C. R. I. (2009) | "Influence of gas hydrate morphology on the seismic velocities of sands" J. Geophys. Res., 114, B11205. doi:10.1029/2009JB006284 |
Clayton, C. R. I., Priest, J.A., Bui, M., Zervos, A. and Kim S. G. (2009) | "The Stokoe resonant column apparatus: effects of stiffness, mass and specimen fixity" Geotechnique, 59, 5, 429-438. doi: 10.1680/geot.2007.00096 |
Wojtowitz, G., Zervos, A. and Clayton, C.R.I. (2008) | "A new method for the detection and quantification of deep-ocean methane hydrates using seismics" 6th Int. Conf. on Gas Hydrates, Vancouver, 2008, on CD and at https://circle.ubc.ca/handle/2429/1022 |
Kingston, E.V.L.K., Priest, J.A., Clayton, C.R.I. and Best, A.I. (2008) | "Gas hydrate growth morphologies and their effect on the stiffness and damping of a hydrate bearing sand" 6th Int. Conf. on Gas Hydrates, Vancouver, on CD and at https://circle.ubc.ca/handle/2429/1022 Publication identifier http://hdl.handle.net/2429/1738 |
Priest, J.A., Kingston, E.V.L.K., Clayton, C.R.I., Schultheiss, P., Druce, M. and NGHP Expedition 01 Scientific Party (2008) | "The structure of hydrate bearing fine grained marine sediments" 6th Int. Conf. on Gas Hydrates, Vancouver, on CD and at https://circle.ubc.ca/handle/2429/1022 Publication identifier http://hdl.handle.net/2429/1796 |
Clayton, C.R.I., Kingston, E., Priest, J.A., and Schultheiss, P. (2008) | "Testing of pressurised cores containing gas hydrate from deep ocean sediments 6th Int. Conf. on Gas Hydrates, Vancouver" CD and at https://circle.ubc.ca/handle/2429/1022 Publication identifier http://hdl.handle.net/2429/1795 |
Kingston, E.V.L.K., Priest, J.A., Clayton, C.R.I. and Best, A.I. (2008) | "Effect of grain characteristics on the behaviour of disseminated methane hydrate bearing sediments" 6th Int. Conf. on Gas Hydrates, Vancouver, on CD and at https://circle.ubc.ca/handle/2429/1022 Publication identifier http://hdl.handle.net/2429/1794 |
Chand S, Minshull TA, Priest J. A., Best A.I., Clayton C. R. I., Waite W, (2006) | "An effective medium inversion algorithm for gas hydrate quantification and its application to laboratory and borehole measurements of gas hydrate-bearing sediments" Geophysical Journal International, 166, 2, 543-552 |
Priest J.A., Best A., Clayton C.R.I., (2006) | "Attenuation of seismic waves in methane gas hydrate-bearing sand" Geophysical Journal International, 164, 149-159 |
Priest, J.A., Clayton, C.R.I. and Best, A.I. (2005) | "Gas hydrates and their potential effects on deep water exploration activities" Proc. International Symposium on Frontiers in Offshore Geotechnics, Perth, Western Australia, (ed. Gourvenec, S. and Cassidy, M.J.), pp. 889-895 |
Clayton, C.R.I., Priest, J.A. and Best, A.I. (2005) | ‘The effects of disseminated methane hydrate on the dynamic stiffness and damping of a sand’ Geotechnique, 55, 6, 423-434 |
Priest, J.A., Best, A.I. and Clayton, C.R.I. (2005) | ‘A laboratory investigation into the seismic velocities of methane gas hydrate-bearing sand’ Journal of Geophysical Research – Solid Earth, vol. 110, paper B04102. |
Priest, J., Best, A., Clayton, C., and Watson, E. (2005) | "Seismic properties of methane gas hydrate-bearing sand" Fifth International Conference on Gas Hydrates (ICGH 5), Trondheim, Norway, June 13-16, vol. 2, pp.440-447. |
GDS可燃冰研究設備包括:
ETAS – ”環境自動三軸系統”
環境自動三軸系統基于標準自動三軸儀GDSTAS系統,帶高壓三軸壓力室和加熱/冷卻系統。溫控系統同傳統常規三軸系統一樣通過軟件控制,三軸測試軟件全量程均適用于HPETAS系統。升級選項同樣可以特別指定,包括增加彎曲元件測試系統,增加非飽和土測試硬件,及位移應變傳感器等。
ETTS – ”高壓環境三軸實驗系統”
高壓環境三軸測試系統基于標準應力路徑三軸測試系統GDSTTS,帶高壓Bishop & Wesley型壓力室及加熱/冷卻系統。溫控系統同傳統常規三軸系統一樣通過軟件控制,三軸測試軟件全量程均適用于ETTS系統。升級選項同樣可以特別指定,包括增加彎曲元件測試系統,增加非飽和土測試硬件,及位移應變傳感器等。
